Description

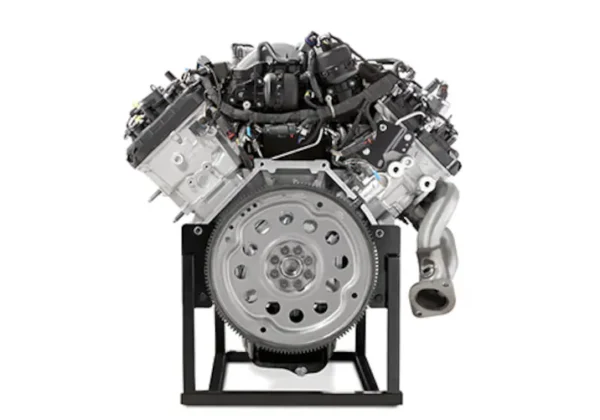

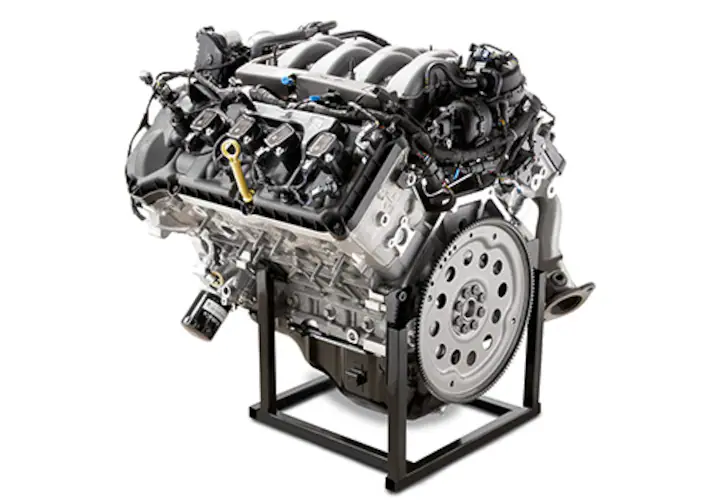

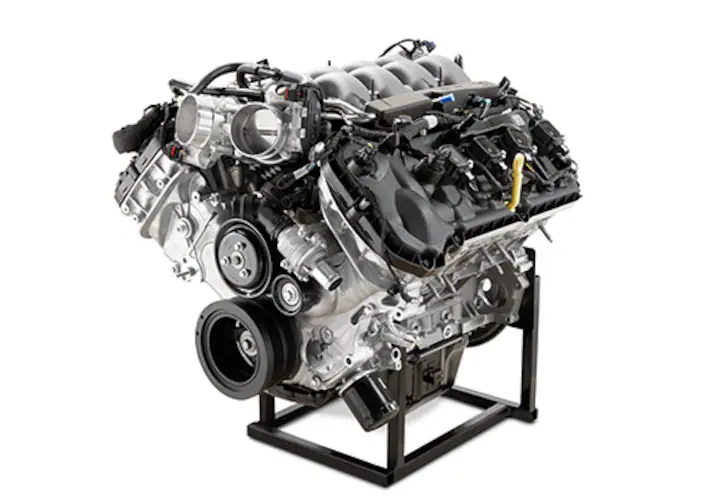

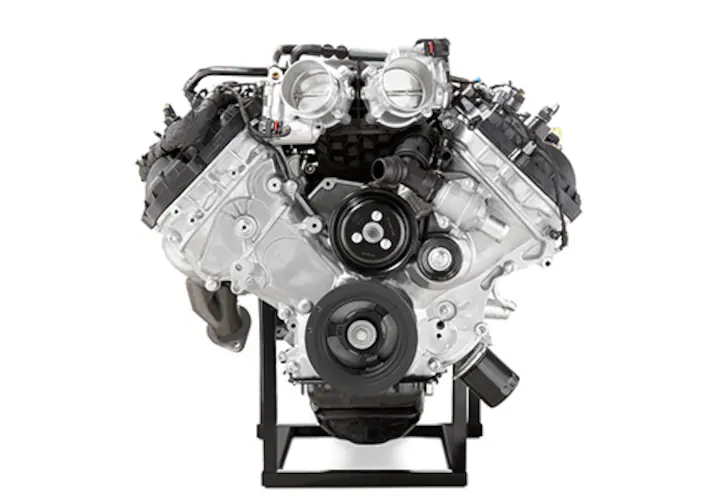

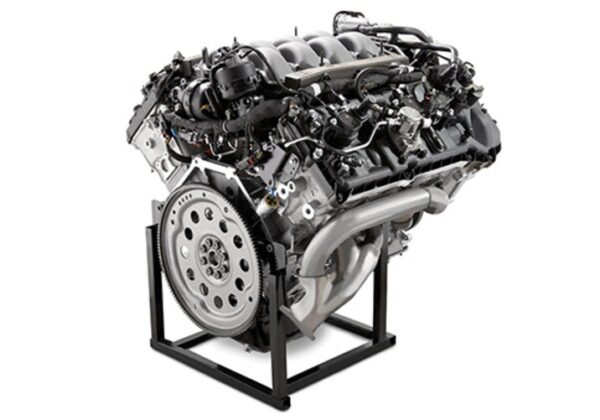

5.0L GEN 4 MUSTANG CRATE ENGINE
5.0L GEN 4 MUSTANG CRATE ENGINE – AUTO ..For SaleFord Performance Parts is excited to introduce the 5.0L Coyote all-aluminum crate engine from the 2024 Mustang GT. This advanced 32-valve DOHC V-8 engine incorporates cutting-edge features, including direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies, and a higher compression ratio to deliver an impressive 480 horsepower and 415 lb.-ft. of torque (using premium fuel).
The lightweight plasma transferred wire arc spray aluminum block is designed for enhanced strength, featuring cross-bolted main bearing caps and thick bulkheads for superior bottom-end durability. It also includes optimized oil drainback and windage control for improved high-rpm performance.
Engine Specifications:
- Horsepower: 480 @ 7,150 rpm
- Torque: 415 lb.-ft. @ 4,900 rpm
- Compression Ratio: 12.0:1
- Bore/Stroke: 93 mm x 92.7 mm
- Pistons: Hypereutectic aluminum
- Connecting Rods: Sintered steel, as used in the BOSS 302 Mustang
- Crankshaft: Forged steel
- Block: Aluminum with plasma transferred wire arc spray weld liner coating
- Head Bolts: Longer 12 mm bolts for higher clamp load
- Oil Pan: 9.5 qt capacity steel pan
- Intake Manifold: Tuned composite for efficient air delivery and weight savings
- Throttle Bodies: Twin 80 mm “drive by wire” electronic throttle bodies with variable runner control
- Cylinder Heads: High-flow aluminum DOHC with four valves per cylinder and variable intake and exhaust camshaft timing
Additional Features:
- Includes: Engine harness and production flexplate (manual flywheel requires M-6007-M50D)
- Exhaust: Mustang GT 409 stainless steel tubular exhaust manifold (RIGHT SIDE ONLY)
- Vehicle Harness and PCM: Not included; use Ford Performance M-6017-M50DA Control Pack for project car installations
- Alternator: Not included (see M-8600-M50BALT or M-8600-M50ALTA for alternator kit)
- A/C Kit: 5.0L Coyote air conditioning kit available (see M-8600-M50AC)
- Motor Mount Kit: Available (see M-6038-M50)
- Engine Cover Kit: Available (see M-9680-M50D)
Additional Notes:
- Driver-side exhaust flange uses the 5.2L pattern.
- Engine weight: 453 lbs. without front accessory drive components.
5.0L GEN 4 MUSTANG CRATE ENGINE – AUTO For Sale
- 480 Horsepower @ 7,150 rpm
- 415 lb.-ft. of Torque @ 4,900 rpm
- 12.0:1 Compression ratio
- Bore 93 mm x Stroke 92.7 mm
- Hypereutectic aluminum pistons
- Sintered steel connecting rods as used on BOSS 302 Mustang
- Forged steel crankshaft
- Aluminum block which features plasma transferred wire arc spray weld liner coating
- Longer, 12 mm head bolts for higher clamp load
- 9.5 qt capacity steel oil pan
- Tuned composite intake manifold provides efficient air delivery and weight savings
- Twin 80 mm single bore “drive by wire”, electronic throttle bodies with variable runner control
- High-flow aluminum cylinder heads, dual overhead camshaft (DOHC), four valves per cylinder, variable intake and exhaust camshaft timing
- Includes engine harness and production flexplate. For engine equipped with manual flyhwheel, see M-6007-M50D
- Engine mount bosses and bell housing mount pattern common to 5.0L modular engines
- Mustang GT 409 stainless steel tubular exhaust manifold on the RIGHT SIDE ONLY
- Vehicle harness and PCM not included
- Use Ford Performance M-6017-M50DA Control Pack which includes wiring, PCM and installation kit, designed for project car installation
Details:
Brand: Ford Performance
Country of origin: Canada
Emission Type: Replacement Parts
Warranty: Available
UPC: 756122019351
Catalogue: FPP
